Description

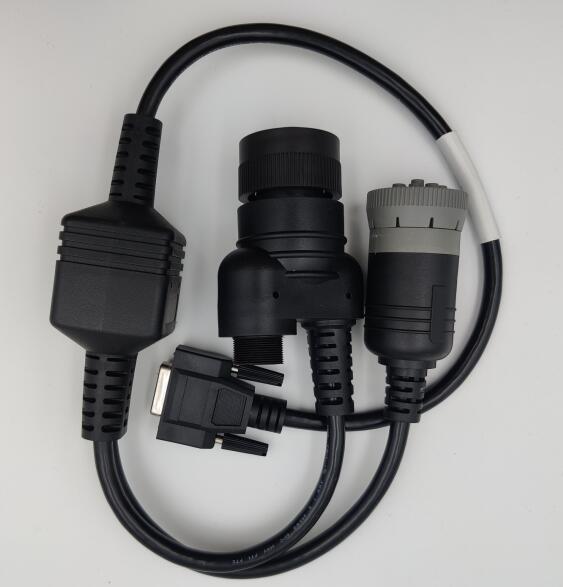

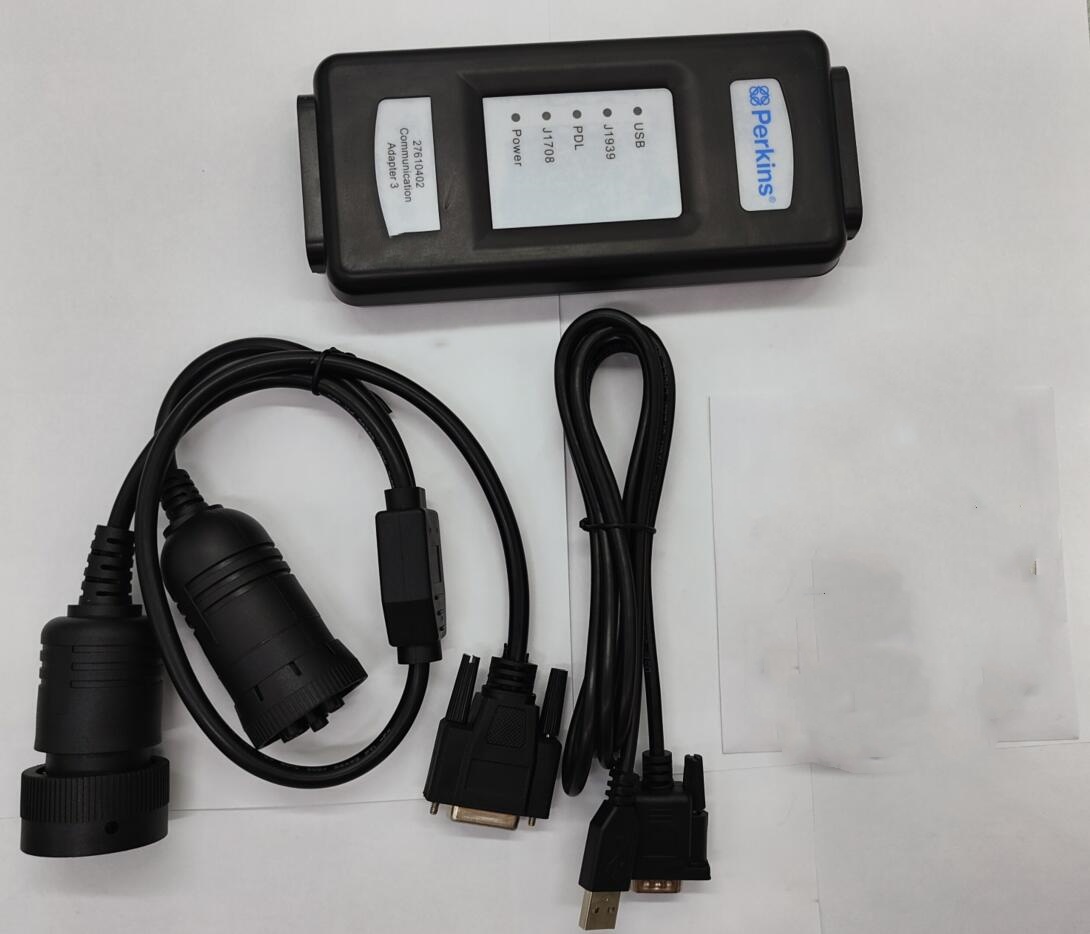

Perkins Communication Adapter CA3 27610402 Pro USB Version for perkins Diagnostic Tool with EST 2022A support EST WinFlash.
Perkins Communication Adapter 3 Features:
High quality with WinFlash function
Firmware:Adapter III , not Adapter II
With Fast USB communication
Compatible Vehicle: For Trucks, Excavators, Air Compressors, Ships, Drilling Rigs
COMPATIBLE SOFTWARE: Perkins Electronic Service Tool (EST) 2020A,2021A,2022A,2023A
Note:Some seller give cheap price with only bad quality (Cover show Perkins adapter,but the firmware replaced by Caterpillar adapter)
Perkins Communication Adapter (CA3) – is a dealer tool used to connect PC based service tool to Perkins equipment. This is the only recommended communication device for Perkins, and the only what has CAT Data Link (CDL) protocol required to properly communicate with a Perkins engines.
It will let you to communicate with the ECMs through a communication data link, allowing existing and potential problems to be diagnosed, products to be configured, and data to be obtained for analysis.
Perkins Communication Adapter 3 Functions:
• View active and logged diagnostics.
• View events where irregularities occurred and were logged by the ECM.
• View the status of a group of parameters (temperatures, pressures, etc.) simultaneously.
• Record and log performance data.
• Graph a group of status parameters.
• View the current configuration of an ECM.
• Change ECM configurations.
• Perform diagnostic tests.
• Perform calibrations.
• Print reports and diagnostic results.
