Kubota DENSO DST-i Diagnostic Kit provides mechanics with access to controllers that are normally only used by auto dealerships working with this special equipment. This feature of the equipment is often the main reason why car services, construction companies and farms decide to buy this diagnostic adapter.
Kubota DST-i diagnostic adapter support variety of DENSO ECMS.It support many OEM software to do diagnostics function and programming.It support Kubota and HINO engine diagnostic and programming.
Note:This product need re-order,my team need about 7 days to prepare it.
Kubota DST-i Diagnostic Adapter Features:
Genuine made
with Kubota DiagMaster software
Run faster than old version
Free DHL shipping
Kubota DST-i Diagnostic Adapter Functions:
Diagnostics
Programming
Data monitor
…….
Kubota DST-i Diagnostic Adapter Specification
| Item | Specifications | |
| OS | µiTRON | |
| CPU | 32-bit RISC microcomputer | |
| Memory | Built-in Flash ROM | 16 MB |
| SDRAM | 16 MB | |
| EEPROM | 32 KB | |
| LCD | Size | 2.7 inch TFT color LCD |
| Resolution | QVGA (320 x 240 dots) | |
| Display color | Max. 260000 colors | |
| Input device | Operation keys | 6 keys |
| External interface *2 | USB | USB 2.0 x 1 |
| Bluetooth *1 | Bluetooth 2.0 | |
| SD memory card | Slot x 1 (supporting SD and SDHC memory cards) | |
| DC jack | JEITA4 standard type | |
| Vehicle communication | Dedicated connector (D-sub 25 pin) x 1 | |
| ISO9141, CAN | ||
| Main unit power supply voltage |
Vehicle power supply | DC 6.5 to 32 V (Datalink cable) |
| USB power (BUS power) | DC 4.75 to 5.25 V *3 | |
| Power consumption | Normally 1.5 W (12 VDC), Max. 2.5 W (12 VDC) | |
| Operating environment |
Operating temperature [Storage temperature] |
0 to 50°C [-10 to 60°C] |
| Operating humidity | 35 to 85% (No condensation) | |
| Dimensions | 135 mm (W) x 70 mm (H) x 35 mm (D) | |
| Weight | Model without Bluetooth | Approx. 225 g |
| Model with Bluetooth | Approx. 230 g | |

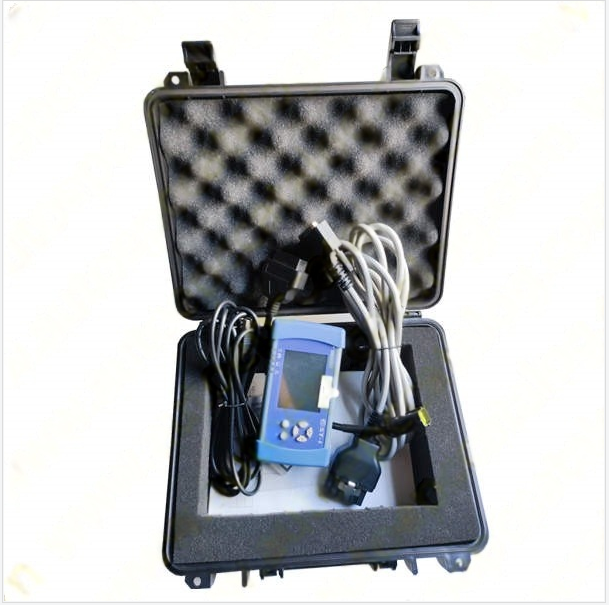

Kubota DST-i Diagnostic Adapter Packages:
1 x DST-I Kubota main unit
1 x USB cable
1 x OBD DLC Cable
1 x 4-PIN Kubota cable
1 x SD memory card
1 x High quality box
