Cummings INLINE 6 Diagnostic Adapter for Heavy Duty Truck High Quality

$179.00

Category: Tag:

Description

Description

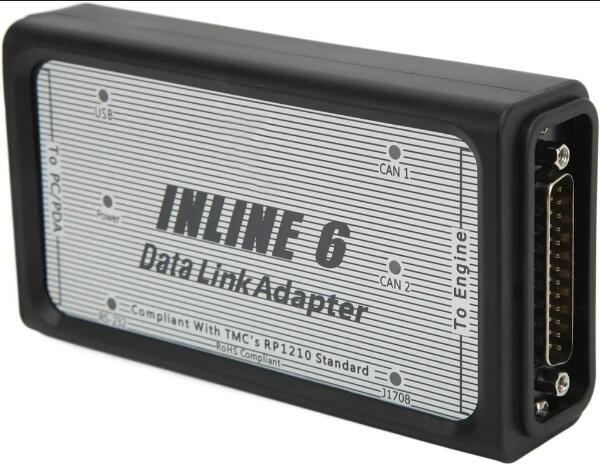

Cummings INLINE 6 is a highly reliable datalink adapter that can be used on a wide range of applications to communicate with vehicle systems via SAE J1708/J1587 and SAE J1939 protocols.

Cummings INLINE 6 is a highly reliable data link adapter that can be used on a wide range of applications to communicate with vehicle systems via SAE J1708/J1587 and SAE J1939protocols. Please note that the INLINE 6 is designed to be used with RP1210 compliant software.

Note:After payment,please contact us on Whatsapp or heavydutydiag@outlook.com and send our delivery details and consignee details



Cummings INLINE 6 Data Link Adapter Features:

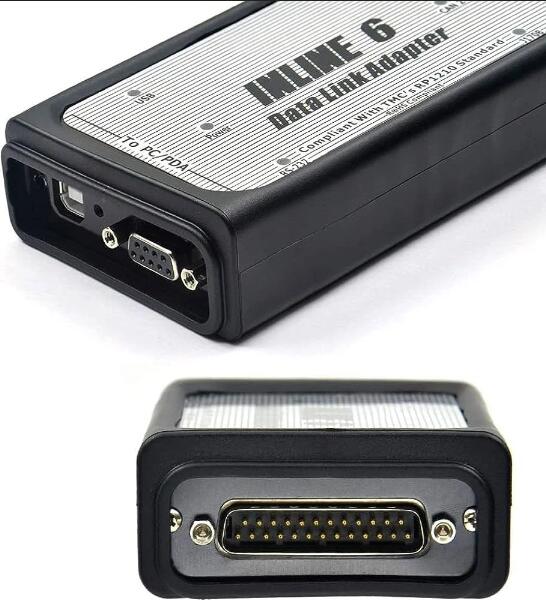

Supports SAE J1708/J1587 and J1939/CAN data links

Both CAN ports auto detect between 250 & 500 kbps

Supports USB full speed port at up to 2M baud rate

Custom USB cable includes thumbscrews for secure mounting to INLINE 6

Supports RS-232 PC serial port at up to 115.2k baud rate

Is fully compliant with TMC’s RP1210 standard

Small enough to fit in pocket

Attractive black powder coated aluminum housing provides ruggedness

Derives 8 V to 50 V DC power from vehicle

Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance

Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports

Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols

INLINE 6 is certified to meet European CE requirements

Rated for -40° to +85° C operating temperature

INLINE 6 meets rigorous  in-cab environmental test requirements



Minimum PC System Requirements

Microprocessor – Intel Pentium 500 MHzMemory -2GB

CD Drive

Operating System – Windows 7, Vista, & XP SP3



To Install the INLINE 6 Software Driver

Insert the INLINE 6 driver CD into your computer’s CD-ROM drive Run INLINE6 Driver Setup.exe0

If a Windows Explorer folder opens, select INLINE6 Driver Setup.exe

Note that on some systems the auto run settings may be set to have the installation to just begin executing upon CD insertion.



IF YOU SEE:

WINDOWS XP – A message appear stating “The software you are installing has not passed Windows Logo…” Click “Continue Anyway”. Click “Finish” when installation is complete.



CAN 1 Port Lamp

A CAN 1 red flashing lamp indicates that the INLINE 6 adapter is physically connected to CAN data link.However,it is not communicate with an ECM on the CAN data link.A CAN 1 green flashing lamp indicates that the INLINE 6 adapter is communicating with an ECM on the CAN data link.



CAN 2 Port Lamp

A CAN 2 red flashing lamp indicates that the INLINE 6 adapter is physically connected to a CAN data link.However, it is not communicating with an ECM on the CAN data link.

A CAN 2 green flashing lamp indicates that the INLINE 6 adapter is communicating with an ECM on the CAN data link



J1708 Port Lamp

A J1708 red flashing lamp indicates that the INLINE 6 adapter is physically connected to a J1708 data link.However, it is not communicating with an ECM on the J1708 data link. A J1708 green flashing lamp indicates that the INLINE 6 adapter is communicating with an ECM on the J1708 data link.



RS-232 Port Lamp

An RS-232 green flashing lamp indicates that the INLINE6 adapter is connected to an active RS-232 port exchanging communications.An RS-232 lamp in the OFF state indicates that the INLINE 6 adapter is not communicating over the RS-232 port.



USB Port Lamp

A USB green flashing lamp indicates that the INLINE 6 adapter is connected to an active USB port an exchanging communications. A USB lamp in the OFF state indicates that the iNLINE 6 adapter is not communicating over the USB port.

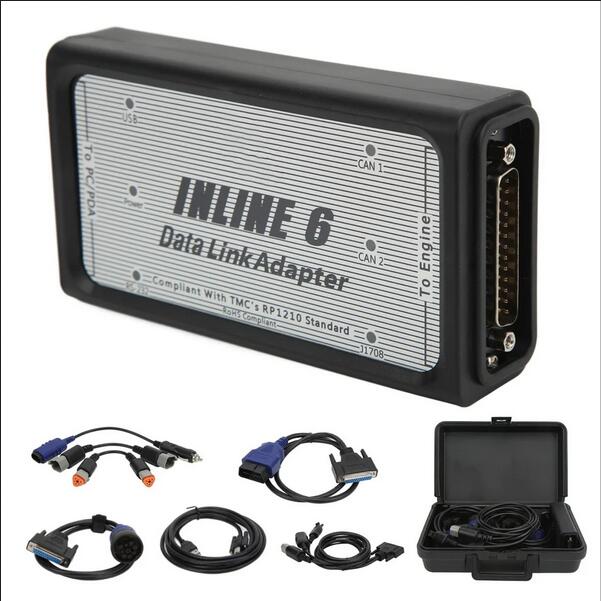

Cummings INLINE 6 AdapterPackage Including:
1 x INLINE 6 data link adapter (P/N 2892093)
1 x USB 14-foot  cable (P/N 2892176)

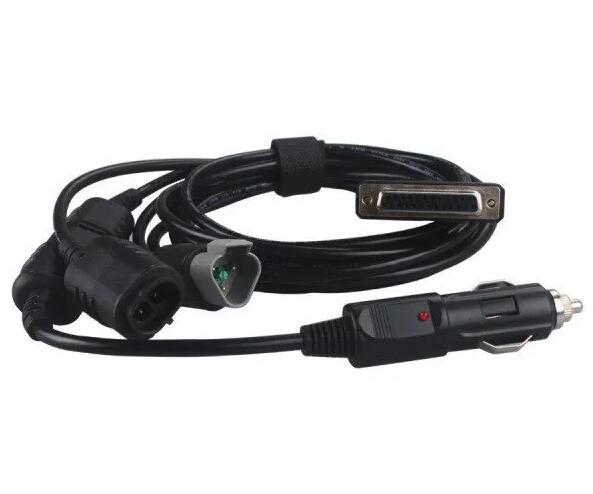

1 x DB25F/9-pin data link cable (P/N 4919780)
1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1 x insite 8.5 software by download link
1 x J1939 Gender Changer adapter (P/N 3163597)
1 x J1939 Backbone adapter (P/N 3163096)
1 x  Storage case (P/N 4918713)
1 x obdII cable  (P/N 4919781)
