This article mainly introduces JCB Loader Changing the Oil and Filter Setup
10.2022 JCB All ECU’s Modules Flash File Download
Drain the oil when the engine is warm as contaminants
held in suspension will then be drained with the oil.
Park the machine on firm ground.
WARNING!
Make the machine safe before getting beneath it. Lower
the attachments to the ground; engage the parking
brake; remove the starter key, disconnect the battery.
JCB Service Master 4 v22.9.3 [10.2022] Diagnostic Software Download
2 Make sure the park brake is engaged and the
transmission set to neutral. Lower the loader arms and
backhoe to the ground, switch OFF the engine and
remove the starter key.
3 Open the bonnet, see Engine Panels, Opening and
Closing the Bonnet.
4 Drain the oil:
CAUTION!
Oil will gush from the hole when the drain plug is
removed. Hot oil and engine components can burn you.
Keep to one side when you remove the plug.
13-3-1-15
a Place a container of suitable size beneath the drain
plug.

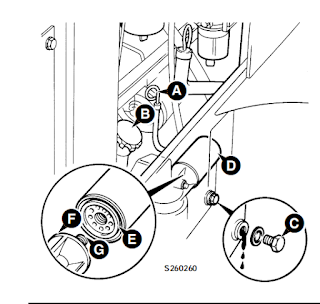

b Remove drain plug C and its ‘O’ ring. Let the oil
drain out, then clean and refit the drain plug with a
new ‘O’ ring. Tighten to 34 Nm (25 lbf ft).
JCB Agco SISU Power WinEEM4 – JCB Service Tool 2.8.0
5 Change the filter:
a Unscrew the filter canister D. Remember that it will
be full of oil.
b Check that adapter G is secure.
c Clean the filter head F.
d Add clean engine lubricating oil to the new filter
canister. Allow enough time for the oil to pass
through the filter element.
e Smear the seal E on the new filter with oil. Screw in
the new filter canister – hand tight only.
6 Fill the engine to the max mark on the dipstick with new
oil through the filler. See Service Capacities and
Lubricants for recommended oil grades. Wipe off any
spilt oil. Check for leaks. Make sure the filler cap is
correctly refitted.
7 Make sure the engine will not start and turn the starter
switch to operate the starter motor until the oil pressure
light is extinguished. (To make sure the engine will not
start, remove the engine shut-off solenoid fuse, housed
in the fuse box).
8 Insert the engine shut-off solenoid fuse and operate the
engine. Check for leaks. When the engine has cooled,
check the oil level.
