This article mainly introduces the disassembly steps of the Isuzu LG4JH-WE-1111 engine 4HJ1 n series intake throttle valve
Isuzu G-IDSS Diagnostic Service System 03.2022 Download and Installation
Removal
1. Disconnect the battery cable negative terminal.
2. Remove the engine cover.(Non-tilt cab model only)
3. Remove the driver seat.(Non-tilt cab model only)
Refer to “FRAME AND CAB”Section 2.
4. Remove the change lever assembly.(Non-tit cab model only)
Refer to “Manual Transmission”in Section 7B.
5. Remove the parking brake lever assembly.(Non-
tilt cab model only)
Refer to “BRAKES”in Section 5C.
ISUZU Truck Workshop Service Repair Manual PDF Download
6. Remove the sub engine cover.(Non-tilt cab model only)
7. Remove the floor support cover.(Non-tilt cab model only)

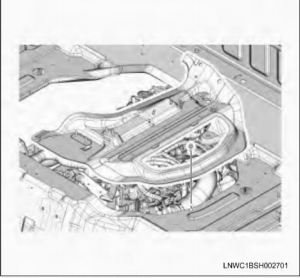

8. Disconnect the boost sensor connector.(Euro4
specification)
Legend
1.Boost sensor connector
9.Remove the air intake pipe and hoses.
.Remove the pipe from the bracket.
·Remove the hose from the intercooler with the pipe attached.
.Remove the hose from the intake throttle valve with the pipe attached.
10.Disconnect the intake throttle valve harness connector.
Isuzu E-IDSS Diagnostic Service System 06.2022
11.Remove the intake throttle valve.
