This article mainly introduces the steps of the Installation Isuzu LG4JH-WE-1111 engine 4HJ1 n series intake throttle valve
ISUZU Truck Workshop Service Repair Manual PDF Download
1. Install the intake throttle valve.
· Install the gasket and intake throttle valve, and tighten at the specified torque.
Tightening torque:10 Nm(1.0kg-m/87 lb-in)
2. Connect the intake throtle valve harness connector.

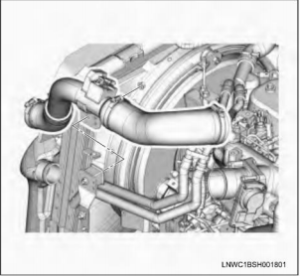

3. Install the air intake pipe and hoses.
· Install the pipe and hoses between the intake throttle valve and intercooler.
· Use a new hose clamp, align it with the marking, and tighten it at the specified torque.
Tightening torque Clamp:8.0N-m(0.8kg-m/71 lbin)
· Fix the air intake pipe to the bracket.
Tightening torque:20 Nm(2.0kg-m/177.5lbin)
Isuzu G-IDSS Diagnostic Service System 03.2022 Download and Installation

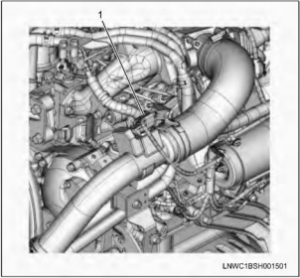

4. Connect the boost sensor connector.(Euro4
specification)
Legend
1.Boost sensor connector
5. Install the floor support cover.(Non-tilt cab model only)
6. Install the sub engine cover.(Non-tilt cab model only)
7. Install the parking brake lever assembly.(Non-tilt cab model only)
Refer to “BRAKES”in Section 5C.
ISUZU IDSS Diagnostic Adapter System Support G-IDSS/US-IDSS/E-IDSS
8. Install the change lever assembly.(Non-tilt cab model only)
Refer to “Manual Transmission”in Section 7B.
9. Install the driver seat.(Non-tilt cab model only)
Refer to “FRAME AND CAB”Section 2.
10. Install the engine cover.(Non-tilt cab model only)
11.Connect the battery cable negative terminal.
