This article mainly introduces how to disassemble the Cummins M11 starter and air compressor
CUMMINGS INPOWER PRO 14.5 Diagnostic Software with 2023.6 PGA by remote installatione
(1) Disassembly of th

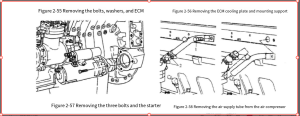

starter. Use a wrench to remove the three bolts and the starter, see Figure 2-57.
(2) Disassembly of air compressor
① Remove the bolts, loosen the hose clamp, and remove the air supply pipe, see Figure 2-58. 1 2 3 1—Bolt 2—Clamp
② Remove the coolant inlet/outlet pipe from the air compressor, remove the mounting bolts, and remove the air compressor, see Figure 2-59.
Cummings INLINE 6 Diagnostic Adapter for Heavy Duty Truck High Quality
③ Remove the coolant inlet pipe and joint, and remove the coolant outlet pipe positioning screw and outlet pipe, see Figure 2-60.
