How to Changing The Doosan DA-30-5 Truck Water Separating Fuel Flter

This article explains how to replace the Doosan DA-30-5 truck water separation fuel filter

Doosan Diagnostic Tool UVIM Support Doosan Excavators High Quality

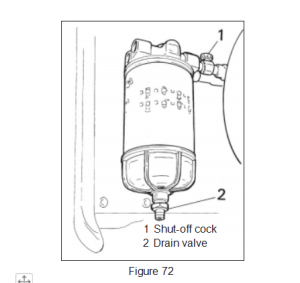

  1. Closetheshut-off cock (1) in the fuel pipe and

position a container under the filter.

  1. Openthedrain tap (2) in the filter cover and let

the fluid run down into the container.

  1. Unscrewthefilter cover.
  2. Unscrewthefilter from the filter head.
  3. Discardtheold filter and use a new filter.
  4. LubricatetheO-ring in the filter cover with engine oil.

2023.07 Doosan DMS-5 Data Monitoring System Diagnostic Software



  1. Screwthefilter cover onto the new filter by hand. Make sure that the drain tap is fully closed.
  2. LubricatetheO-ring on the filter with engine oil.
  3. Fillthewidth of the filter with clean fuel.
  4. Screwthefilter into position until the O-ring rests against the filter head. Tighten the filter another 1/2-3/4 turn by

hand.

  1. Opentheshut-off cock and check the system for leaks.
  2. Bleedthefuel system.
